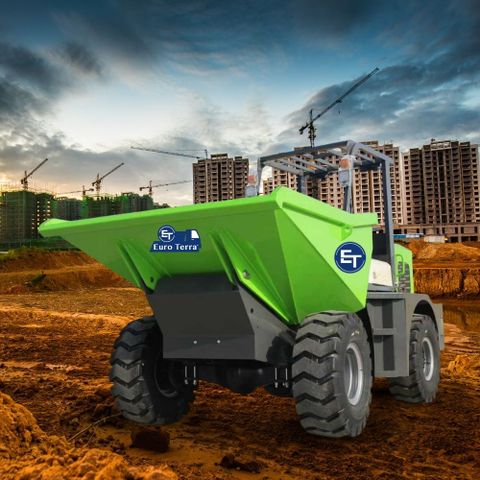

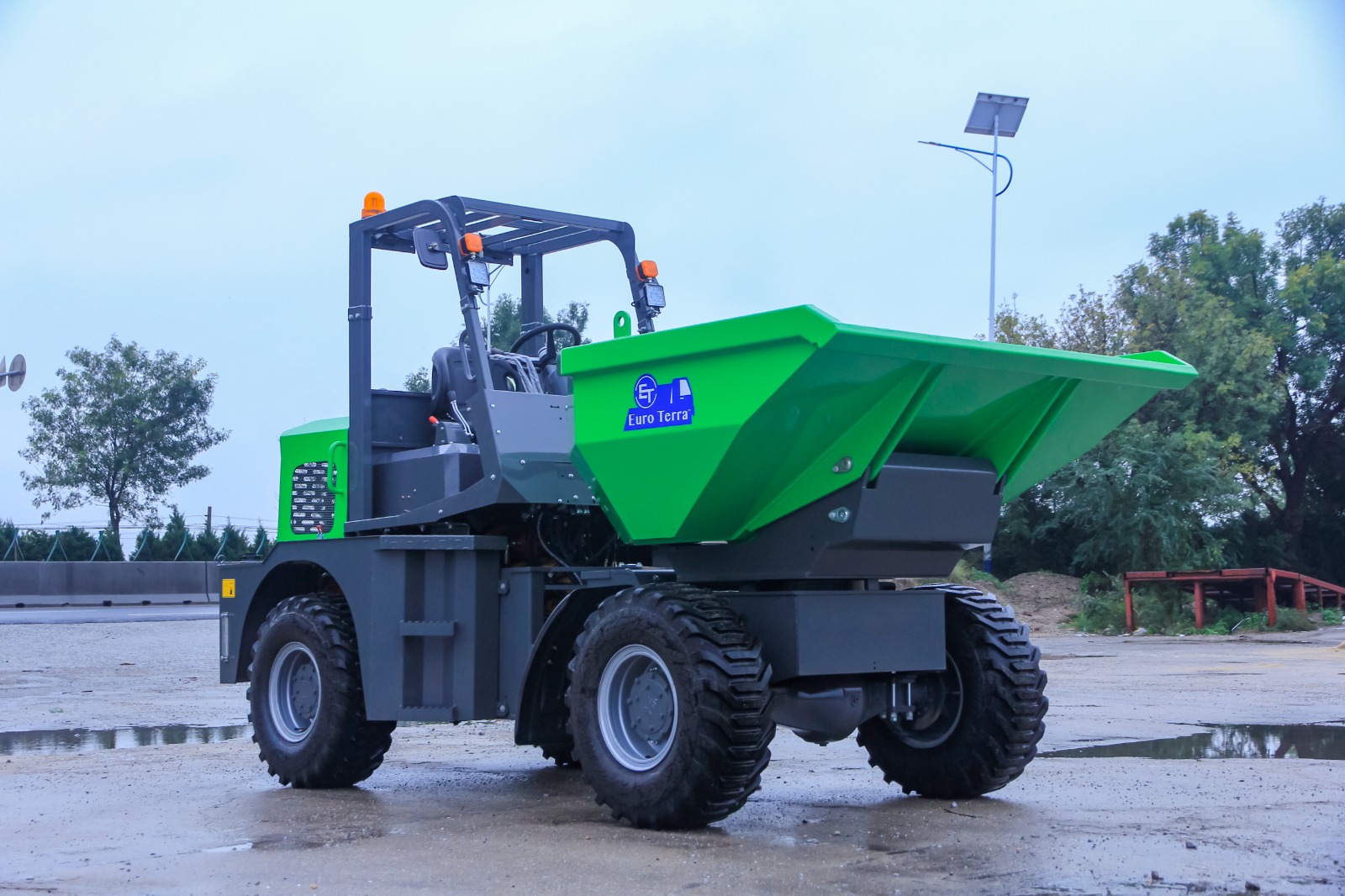

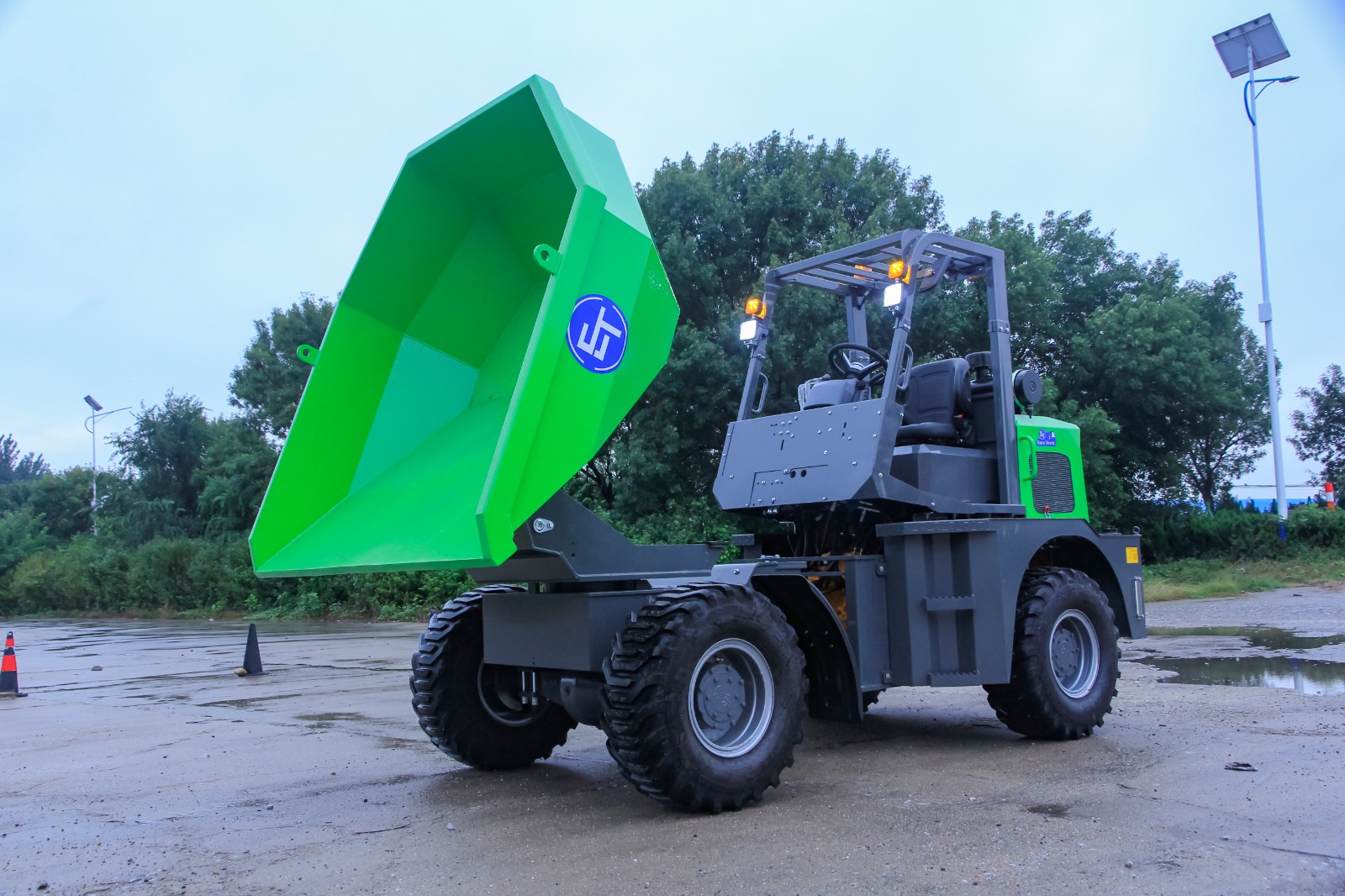

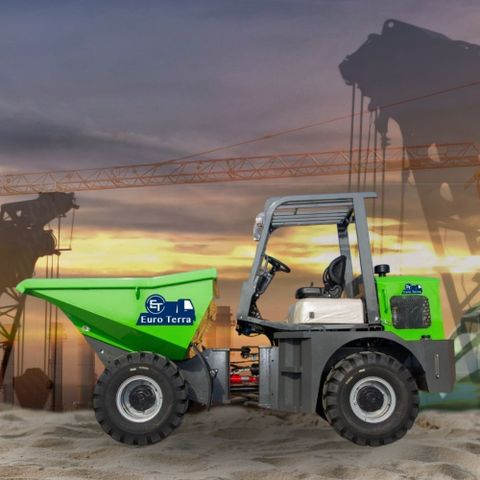

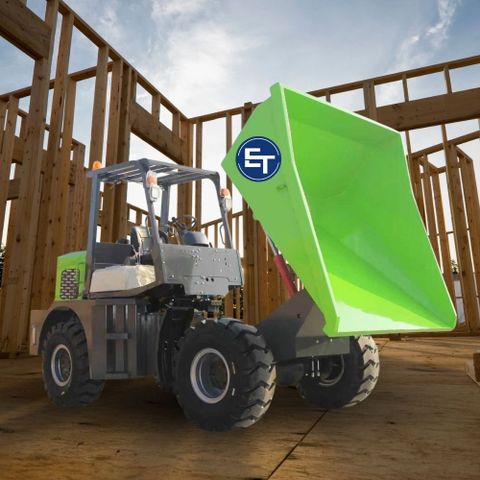

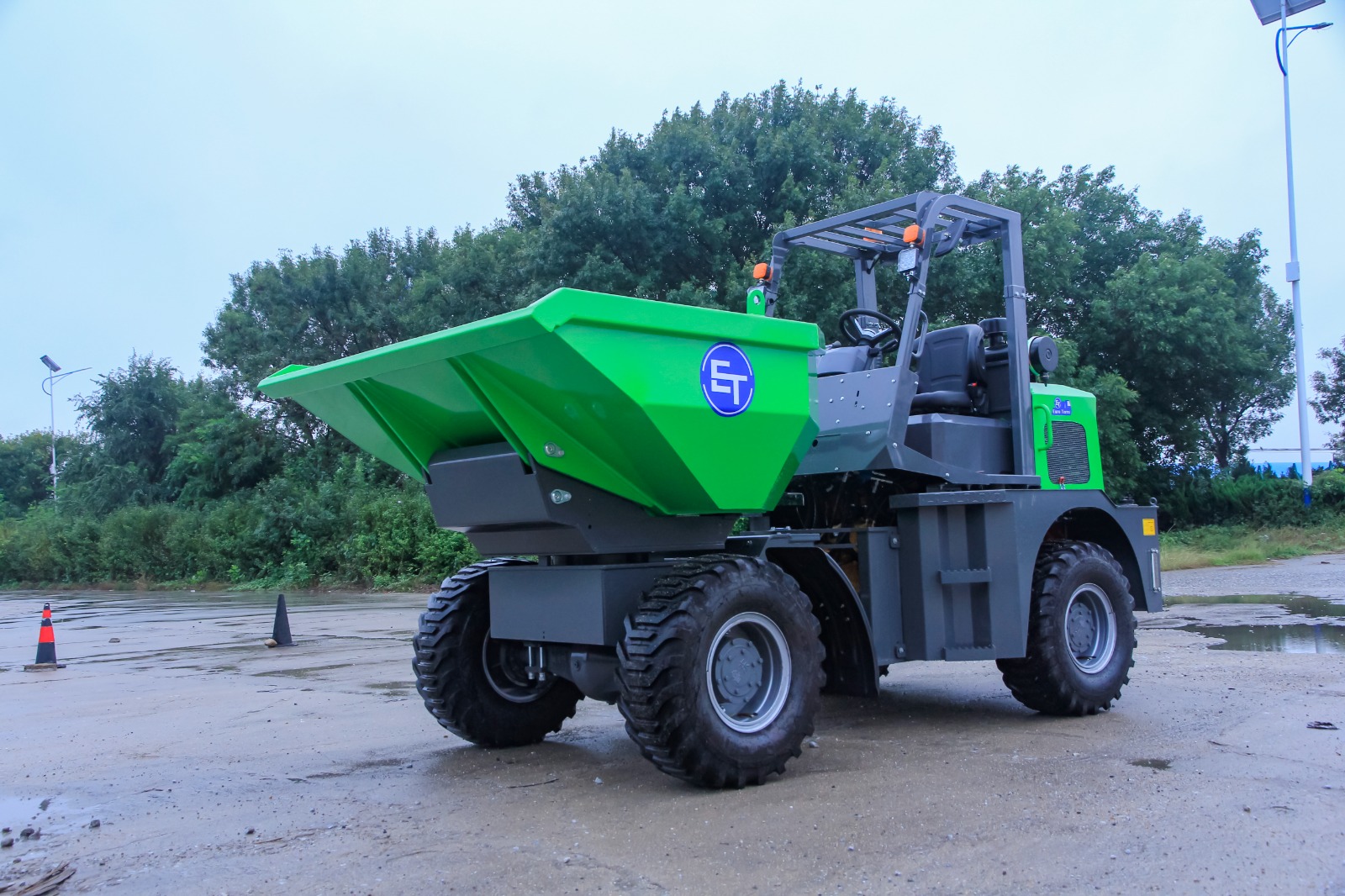

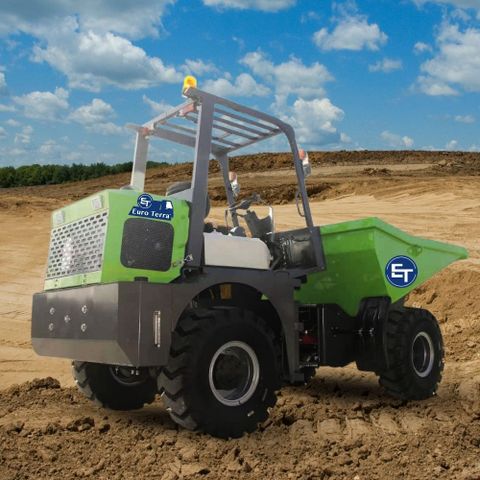

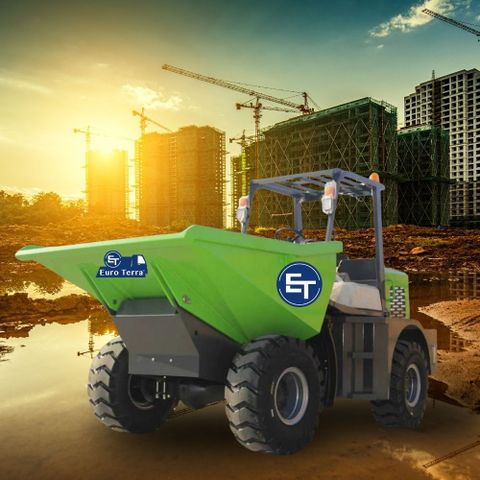

EURO TERRA™ Mini 3 TON Site Dumper LZ30D
Last Update
Price:
R.F.Q.
The LZ30D Mini Site Dumper offers a 3 ton loading capacity with 4×4 wheel drive, automatic gearbox, and hydraulic torque converter for smooth performance. It reaches up to 32 km/h, handles 30° grades, and is built with pilot control and Japanese steel plate using laser cutting and robot welding. Backed by a 1-year/2000-hour guarantee and CE certified by TÜV Rheinland, it delivers strength and reliability you can trust.
Share Product:
Detail
Euro Terra mini site dumper is equiped with lanetary transmission and Wheel Side Deceleration Bridge, it makes our site dumper compact structure and big torque.
Euro Terra mini site dumper adopt New-style articulated front and rear frames, this makes this site dumper with small turning radius, Passing Ability, heavier carrying capacity and durable stability.it manufacture with excellent cutting proof and wearproof performance, wide antiskid groove, good heat dispersion and self-washing performance, big adhesive to ground, and nice traction.
Specification Of Mini Site Dumper
LZ30D Mini Site Dumper
| Rated Load | 3500kg |
| Dumper Bucket | 1.7m³ |
| Engine | 55kw 4-Cylinder Diesel |
| Gearbox-Auto | 4-forward 2-back |
| Tire | 20.5 / 70-16 |
| Drive | 4x4 wheel drive |
| Gradability | 30° |
| Brake System | Caliper-disk |
| Operation Weight | 3100kg |
| Dimension | 4200x1800x2700mm |
